Nextivity CEL-FI GO G41-JE Building Pack
Upgrade your cellular coverage with CEL-FI GO G41-JE, the latest in 4G repeater tech. Boasting higher output power for the largest coverage area, it supports Telstra, Optus, and Vodafone-TPG. Ideal for in-building applications, now with RJ45 Ethernet for remote management. Enjoy up to 3000 m2 coverage, carrier aggregation, and an exclusive
PRODUCT DETAILS:
CEL-FI GO G41-JE represents the latest in 4G cellular repeater technology. Building on the success of the G32 model, G41 has a higher output power ( 20 dBm), providing the largest coverage area of all GO models.
The G41 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider.
CEL-FI G41 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
Expanding on G32’s dual-band functionality, G41 supports carrier aggregation with 40 MHz of relay bandwidth.
FEATURES:
- 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
- 3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but is currently not enabled or approved)
- Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time
- Up to 3000 m2 coverage area
- Two bands simultaneous relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring

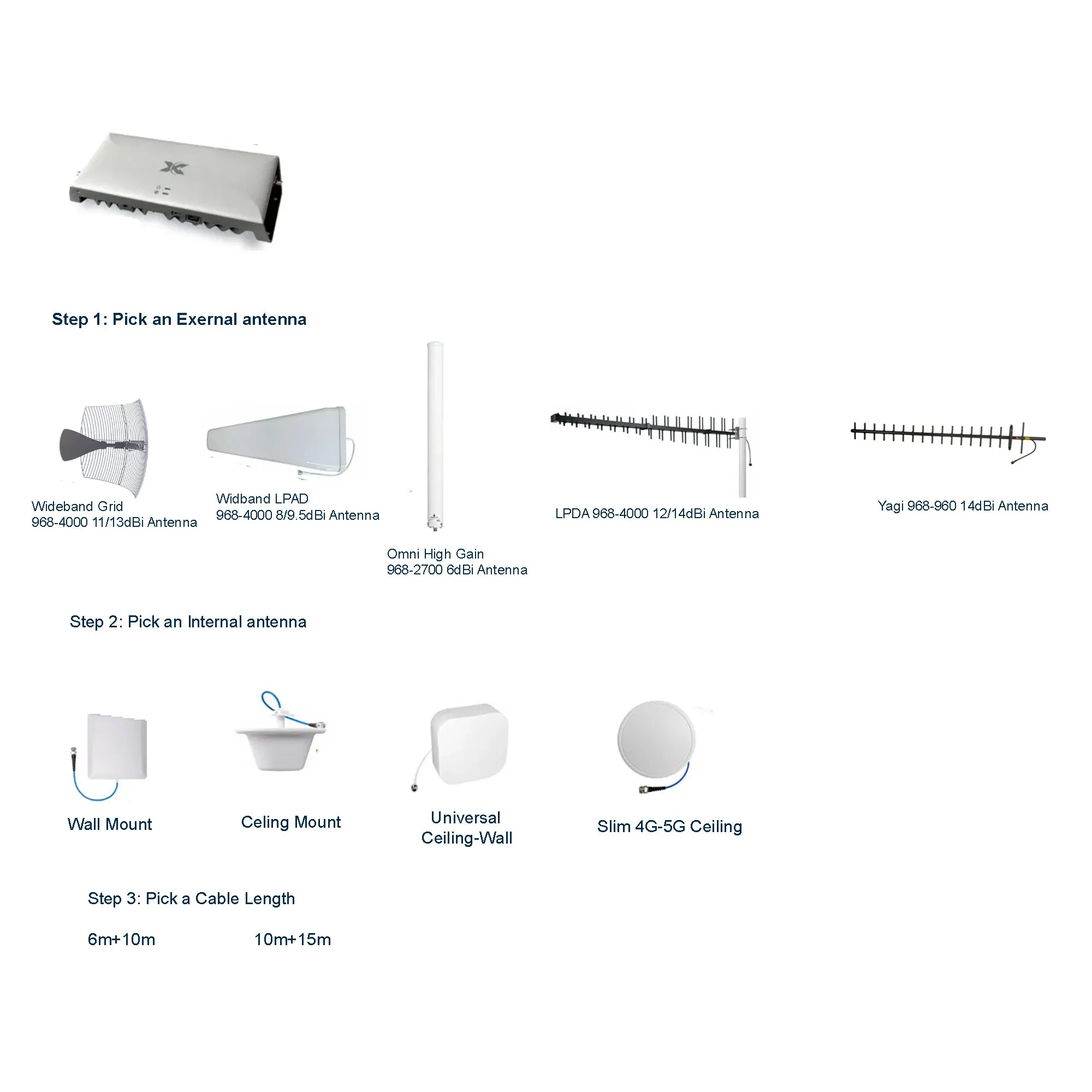

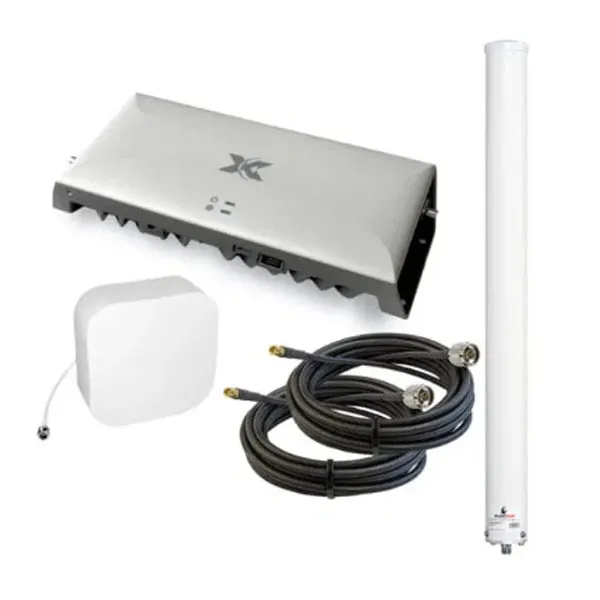

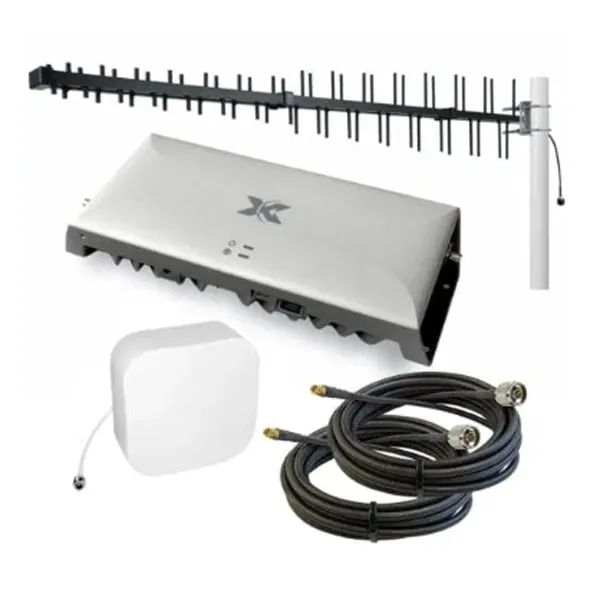

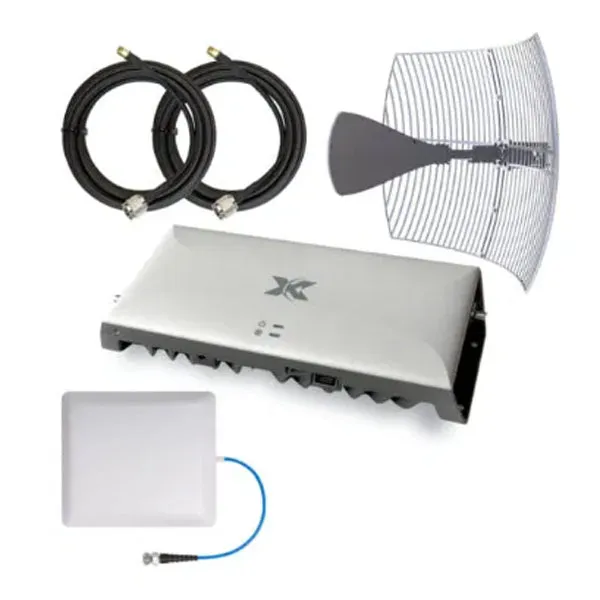

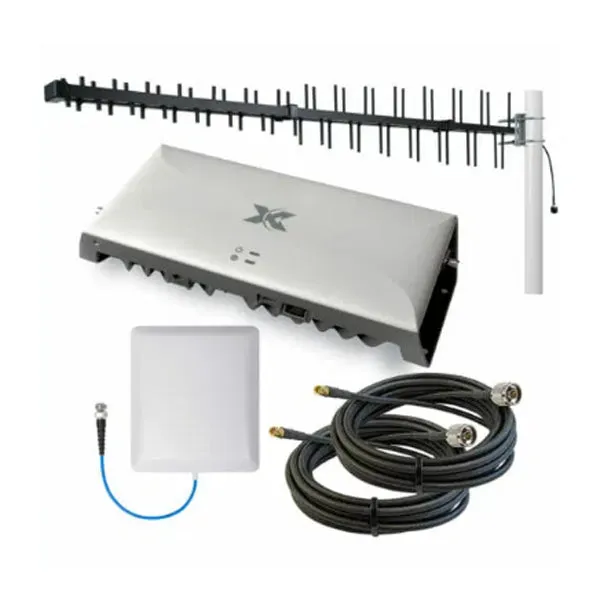

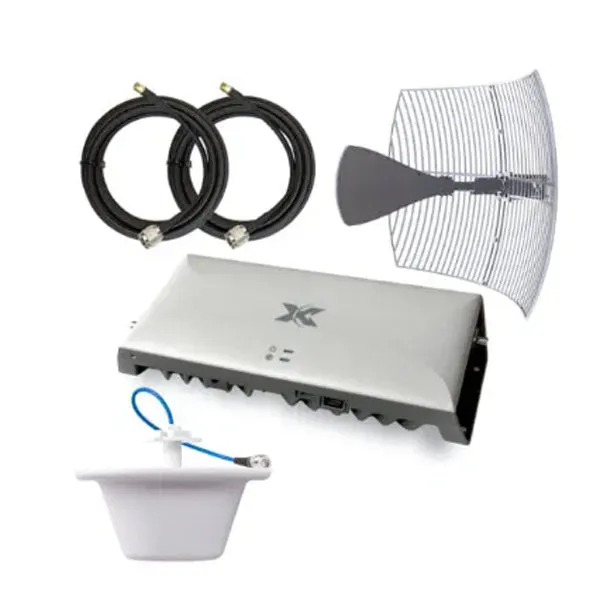

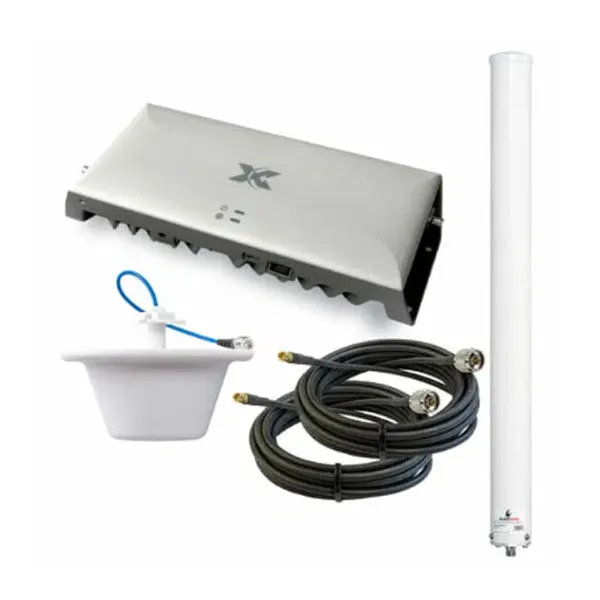

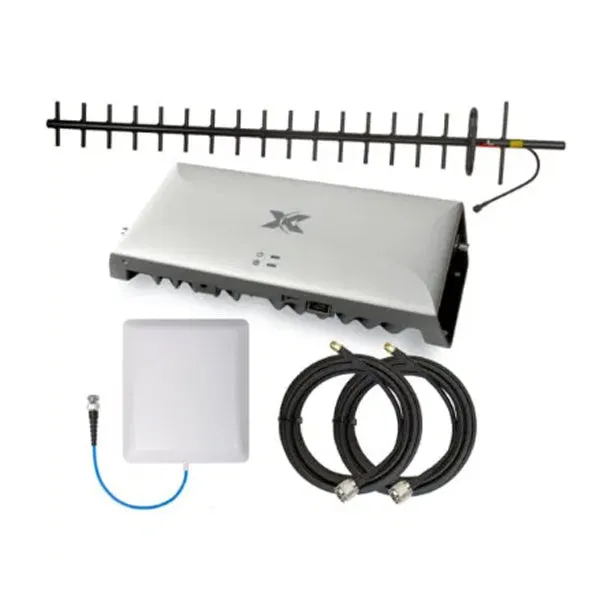

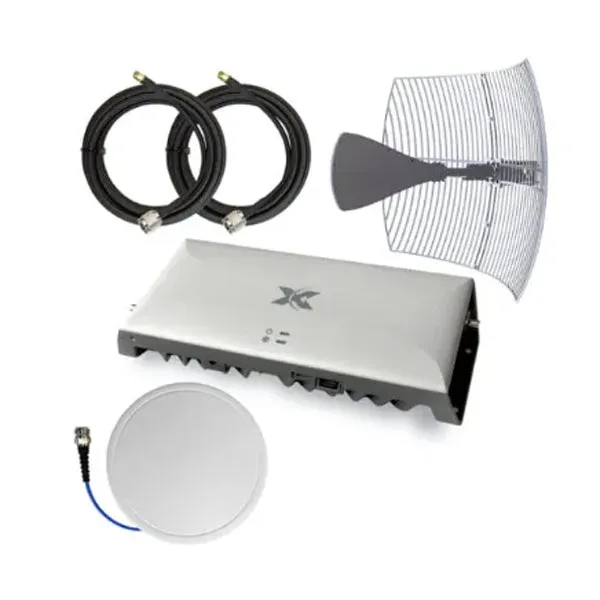

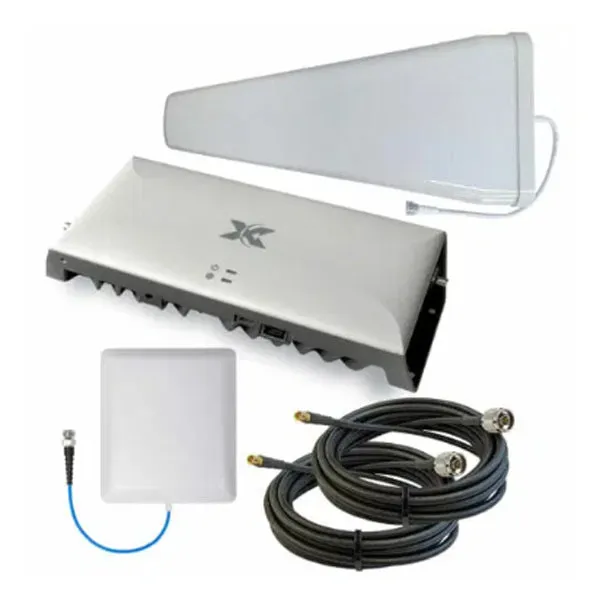

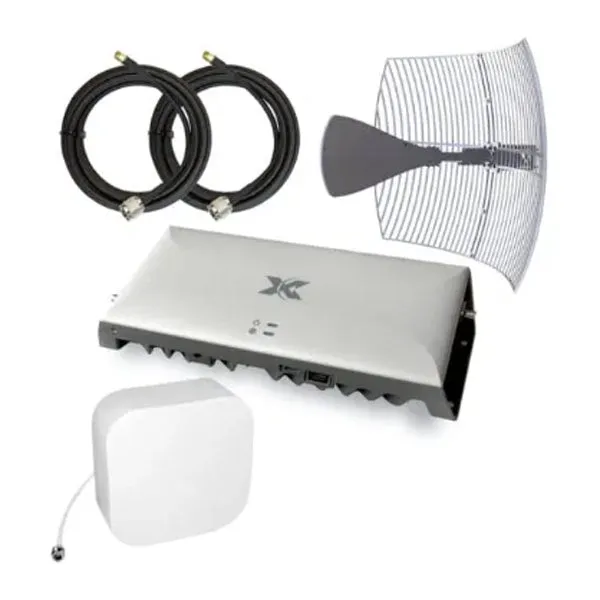

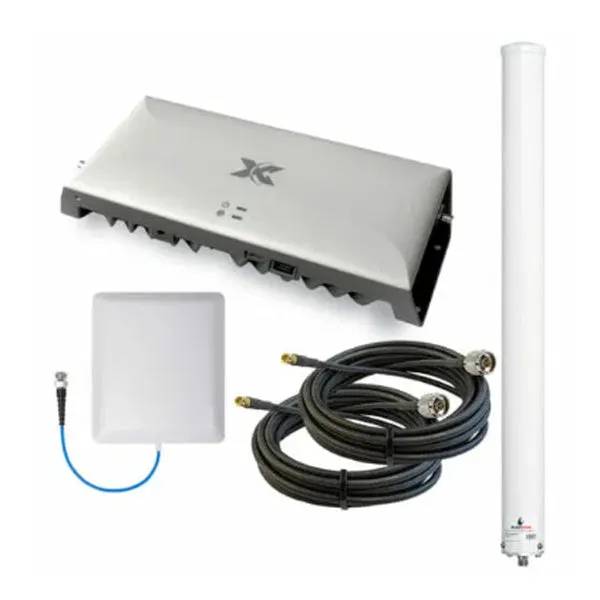

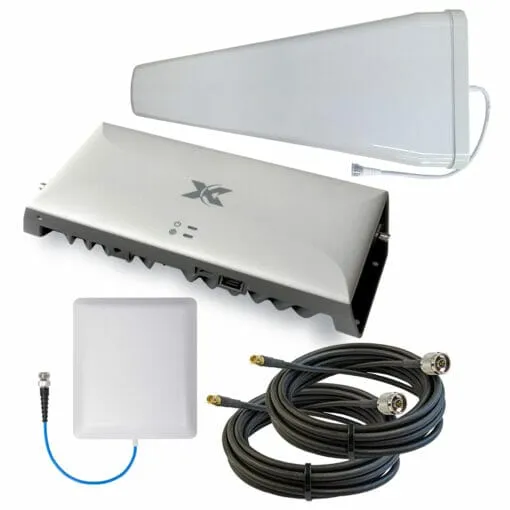

PACK INCLUDES:
- Nextivity CEL-FI GO G41-JE – Switchable between Telstra, Optus and Vodafone-TPG (one carrier at a time)
- Server antenna Options:
- Blackhawk Wall Mount 698-4000MHz Panel Antenna -150dBc PIM

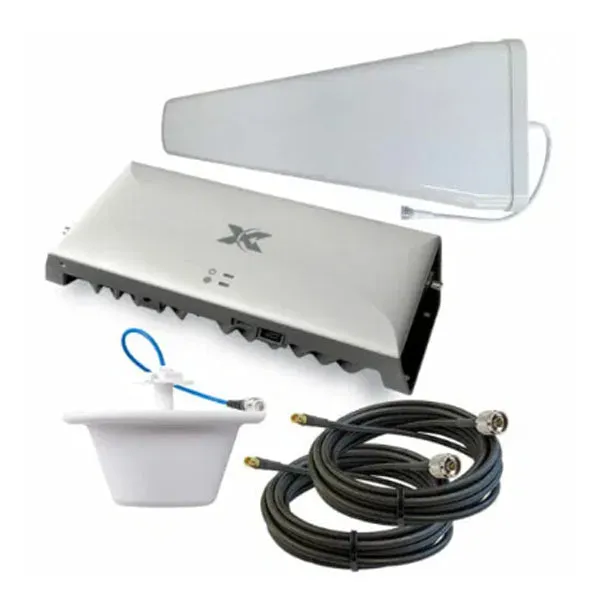

- Blackhawk Ceiling Dome 698-4000MHz Antenna -150dBc PIM

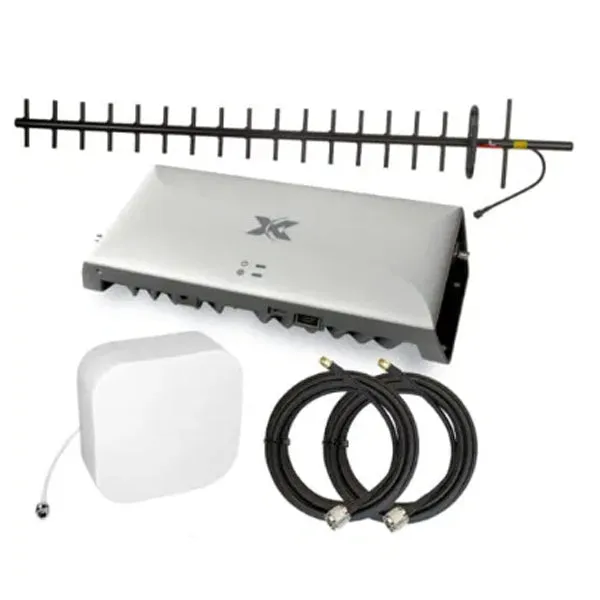

- Powertec Universal Ceiling-Wall Antenna 698-4000MHz

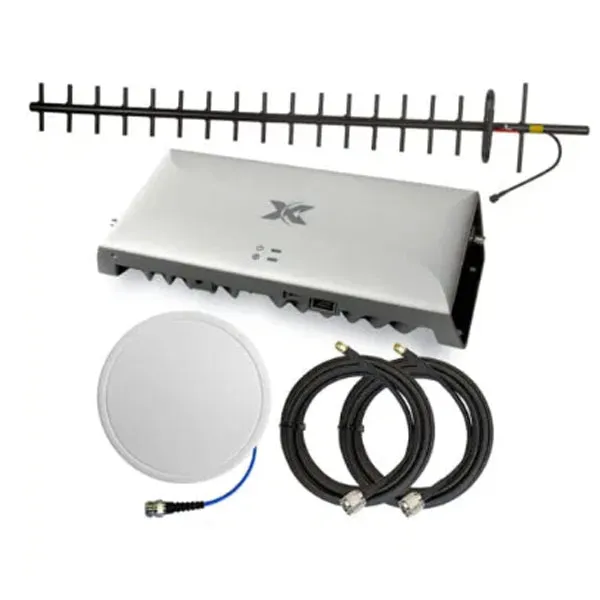

- Blackhawk Slim 4G-5G Ceiling Antenna 700-4000MHz
- Pulse DAS Ultrathin Clear Antenna -155 dBc PIM 608-2700MHz
- Donor Antenna Options:

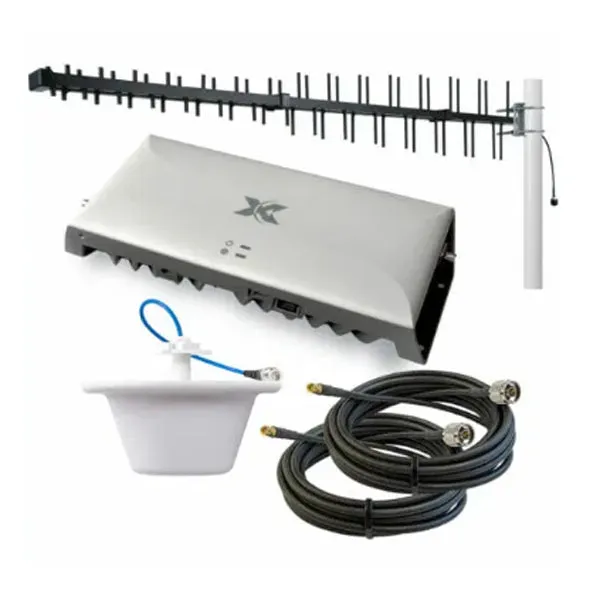

- Blackhawk LPDA 698-4000MHz

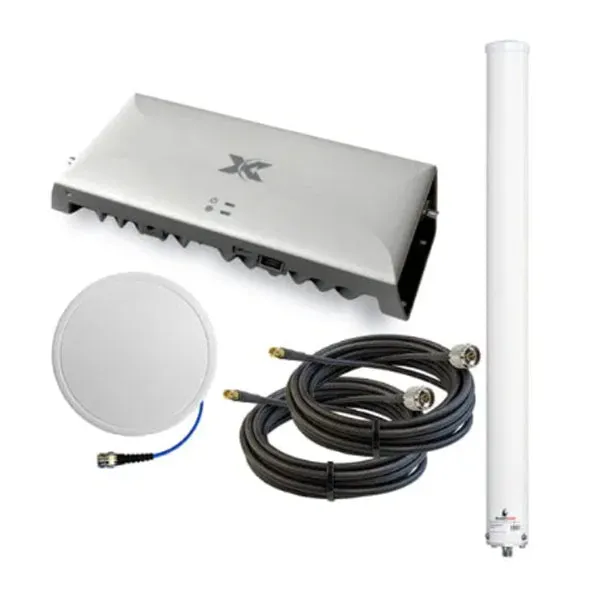

- Blackhawk Omni High Gain 698-2700MHz

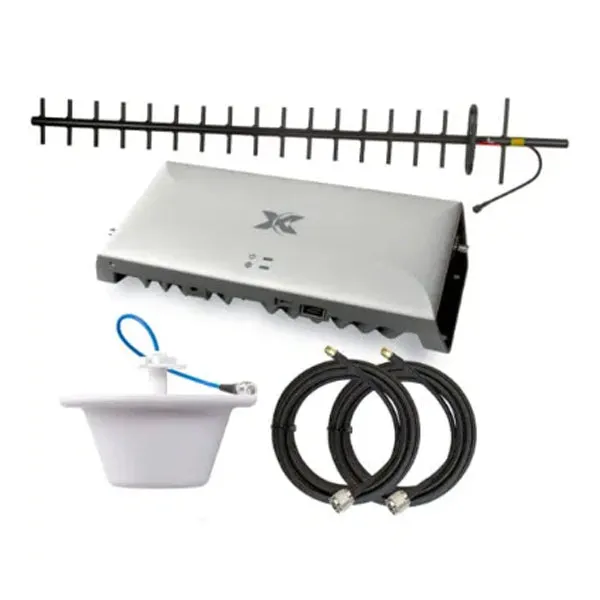

- Blackhawk Yagi 698-960MHz

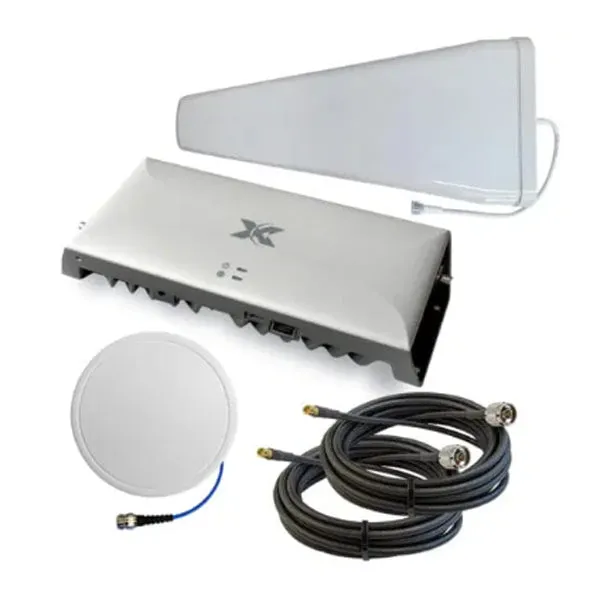

- Blackhawk Wideband LPDA 698-4000MHz
- Powertec Wideband Grid Antenna 698-4000MHz
- 1m Ethernet cable
- PTL-240 6m 10m /10m 15m Coaxial Cable N male to SMA Male
- 240v Power Supply
