To make the wheel light, the rims are built entirely with Toray T700 and T800 carbon fiber cloths. This combination makes the wheelset lighter than its equivalents in the Fast and Fight series. The super-light attributes of this wheelset do not affect its strength. The Aero 45 Disc is strong enough to support a maximum rider weight of 105Kg or 232Lbs.
Punctures can be brutal; to avoid this unpleasantness, the Aero 45 Disc’s aerodynamic profile supports 700 x 25-40mm size tubeless tires. The wheelset also features 25mm wide rims, which offer more stability than slimmer wheels.
For flawless wheel action and smooth power transmission, the Aero 45 Disc comes with a set of D01 hubs by ICAN. These high-performance hubs are compatible with Shimano 10 and 11-speed cassettes. The D01 hubs by ICAN are also compatible with 6 Bolt and Centerlock rotors.
Twenty-four Sapim CX-Ray spokes hold the ICAN D01 spokes in place on both the front and the rear wheels. The aerodynamically sound spokes are arranged in a 2-cross pattern on both wheels.
The Aero 45 Disc does not feature a braking surface.With each purchase comes a 2-year guarantee.
We used high-quality Toray T700 & T800 carbon fiber and layered it in a way that ensures high stiffness and great longevity.
The heart of these wheels consists of our in-house designed hubs (Novatec hubs) with sealed bearings that connect Sapim CX-Ray spokes with the rim. This combination provides great stiffness. You will feel the forward movement immediately once you start pushing into your pedals.
Feel free to choose from one of two brake-type standards (center lock or 6-bolt) and driver body type (XDR 12 speed, Shimano 10/11 speed, and SRAM XD Driver ) before you place your order.
ICAN AERO wheels are available for or brakes and in multiple rim depths. The disc brake includes rim depths of:
| Type | Carbon Disc Wheelset |
| Rims | Superlight AERO 45 |
| Material | 100% Carbon Fiber Toray T700 & T800 |
| Size | 700C |

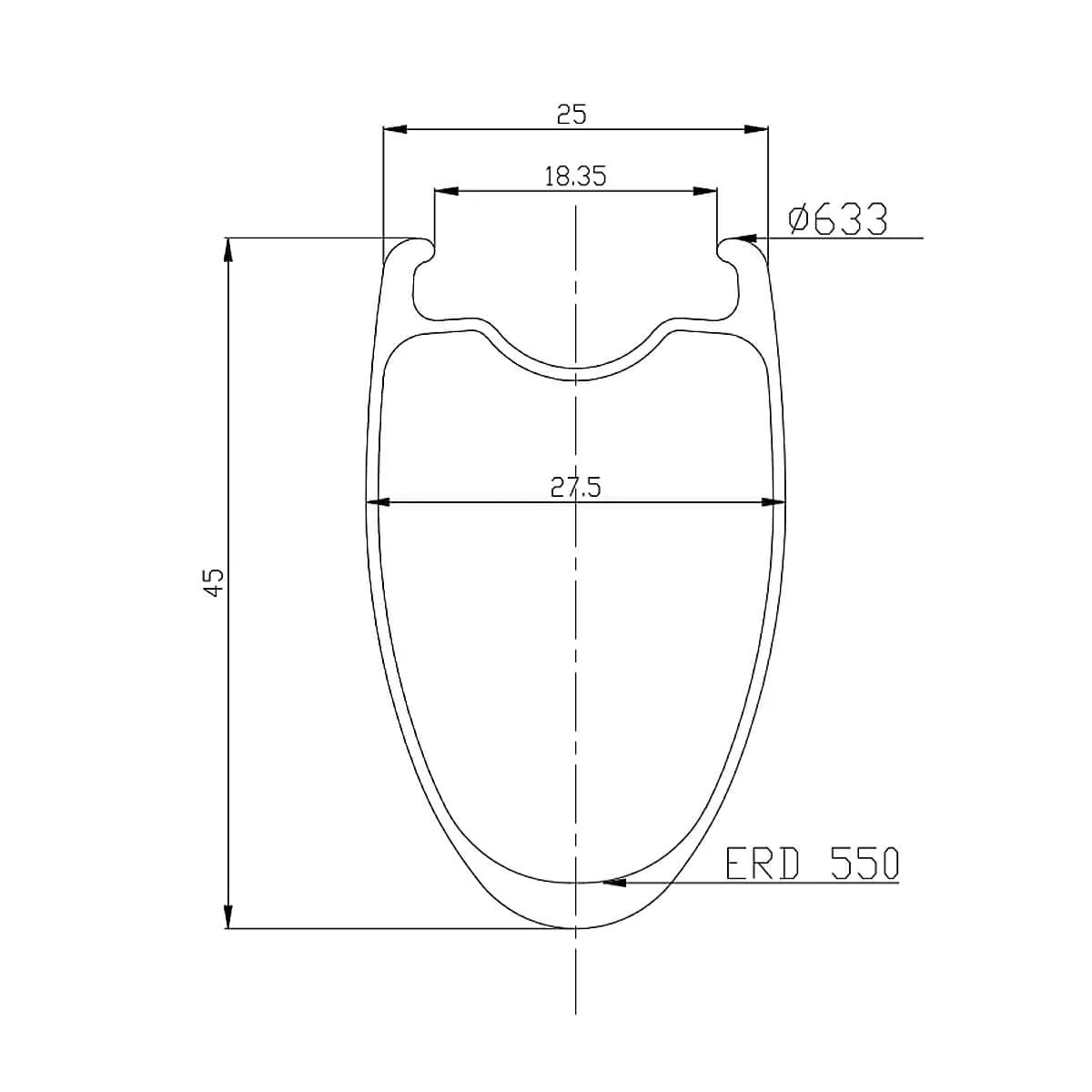

| Rim | Drills: 24/24 Holes Internal: 18.35mm |
| Depth | 45mm |
| Profile | Clincher Tubeless Ready |
| Hub | ICAN D01 Hubs |
| Spoke | Sapim CX-Ray Spokes |
| Spoke Count | Front: 24 spokes Rear: 24 spokes |
| Spoke Pattern | Front: 2-cross Rear: 2-cross |
| Nipple | Alloy Color: Black |
| Cassette Compatibility | Shimano 10/11speeds |
| Wheelset Weight | Total: 1407 -20g (Centerlock, 12x100/12x142mm) Front: 631 -10g Rear: 776 -10g |
| Braking Surface | No Braking Surface |
| Recommended Tyre Size | 700 x 25-40mm |
| Rider Weight Limit | 105kg |
| Guarantee | 2 years |
| Package Included | A pair of Wheelset (Thru Axles are not included) |
| Packing Size | 81.5cm x 17cm x 65.5cm |

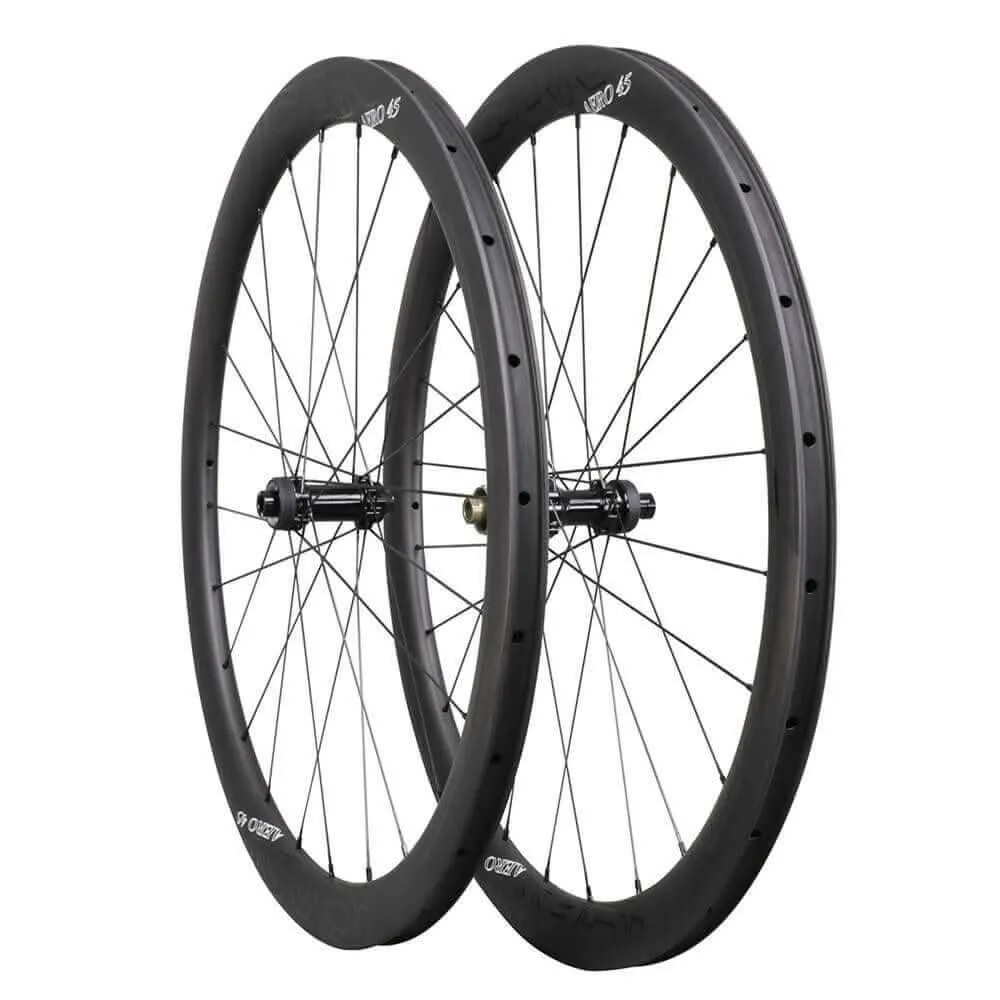

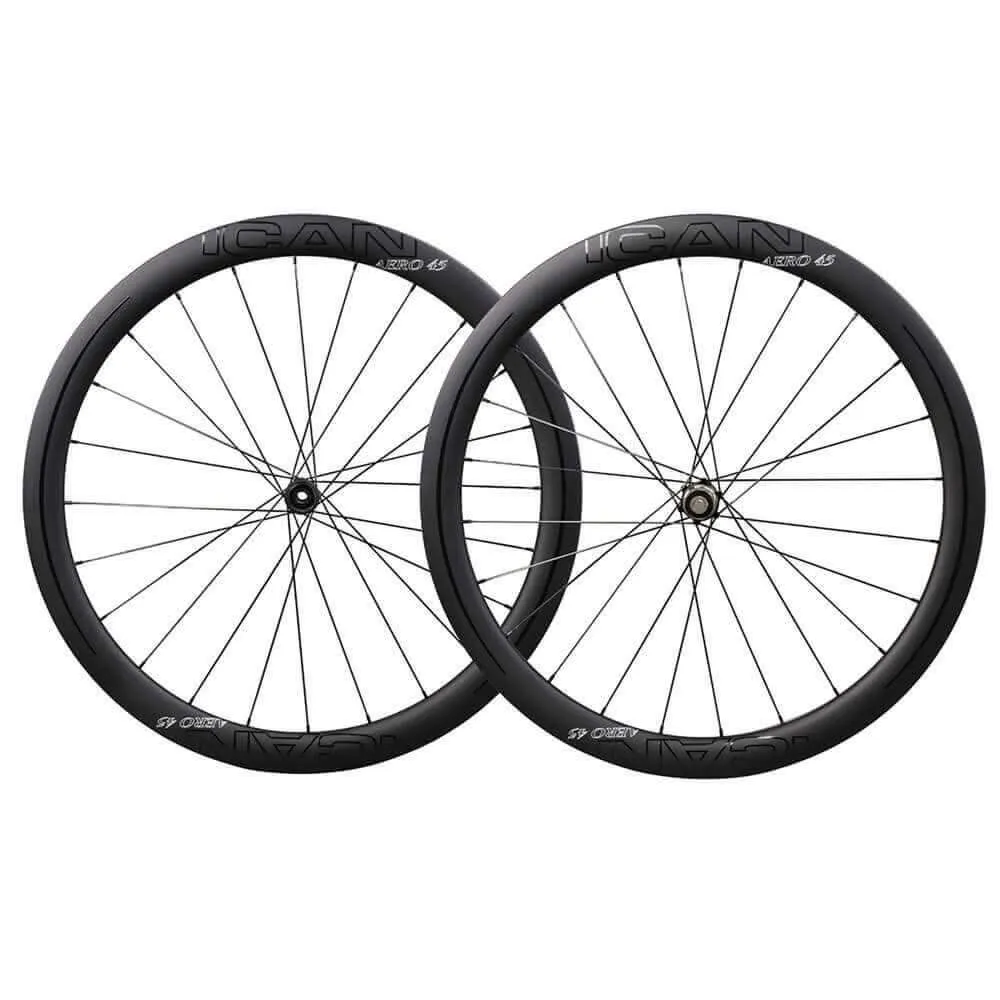

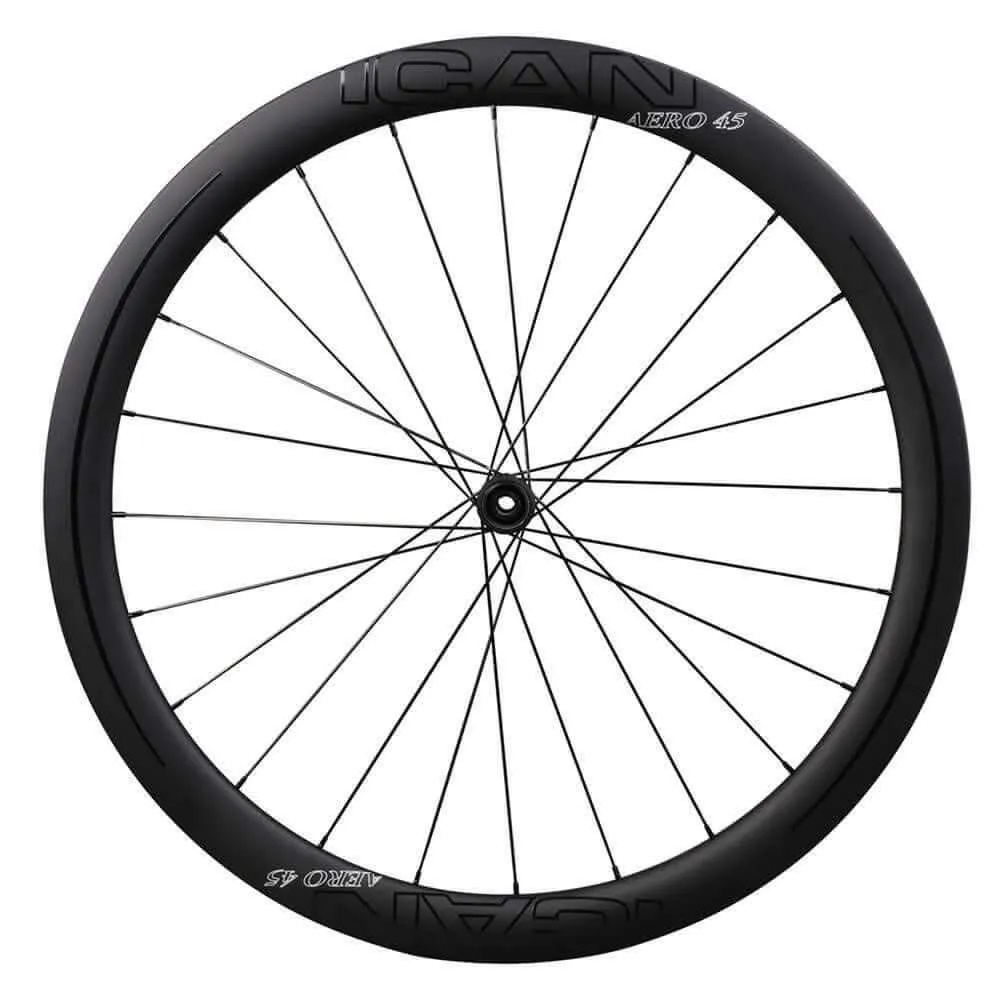

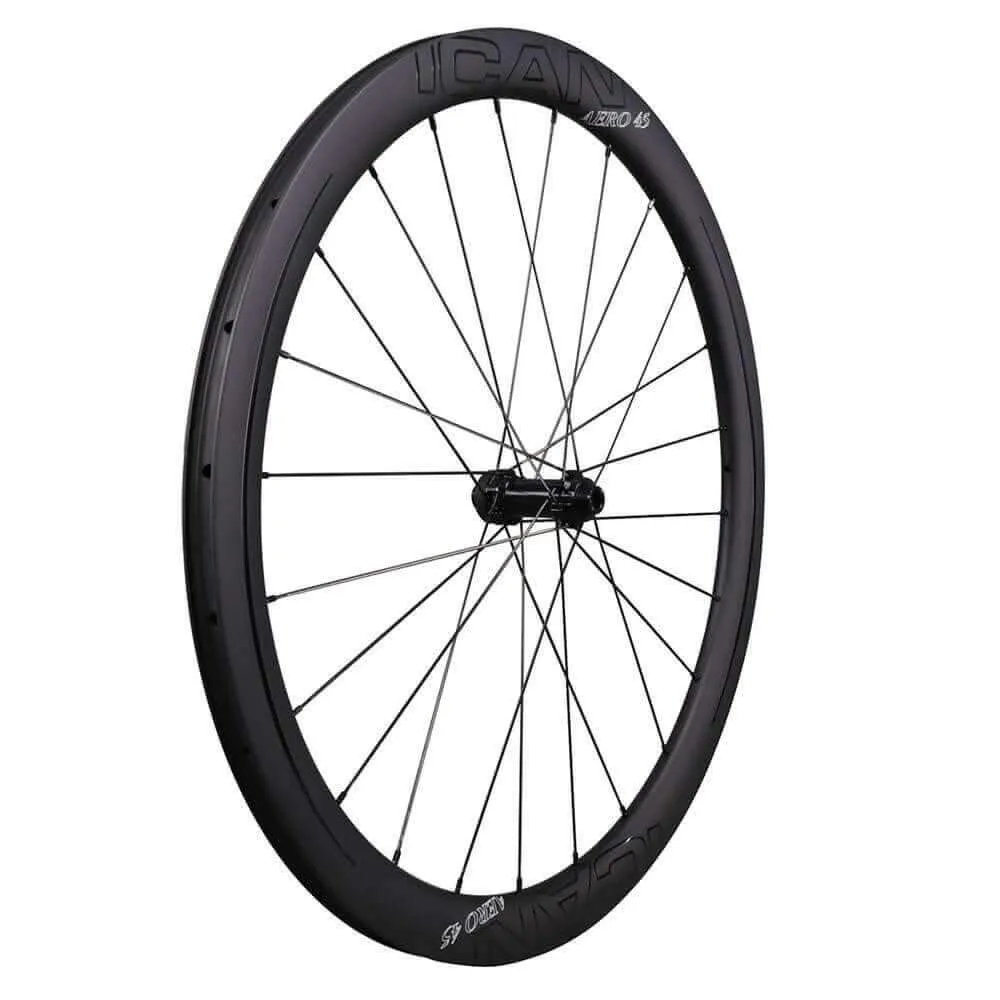

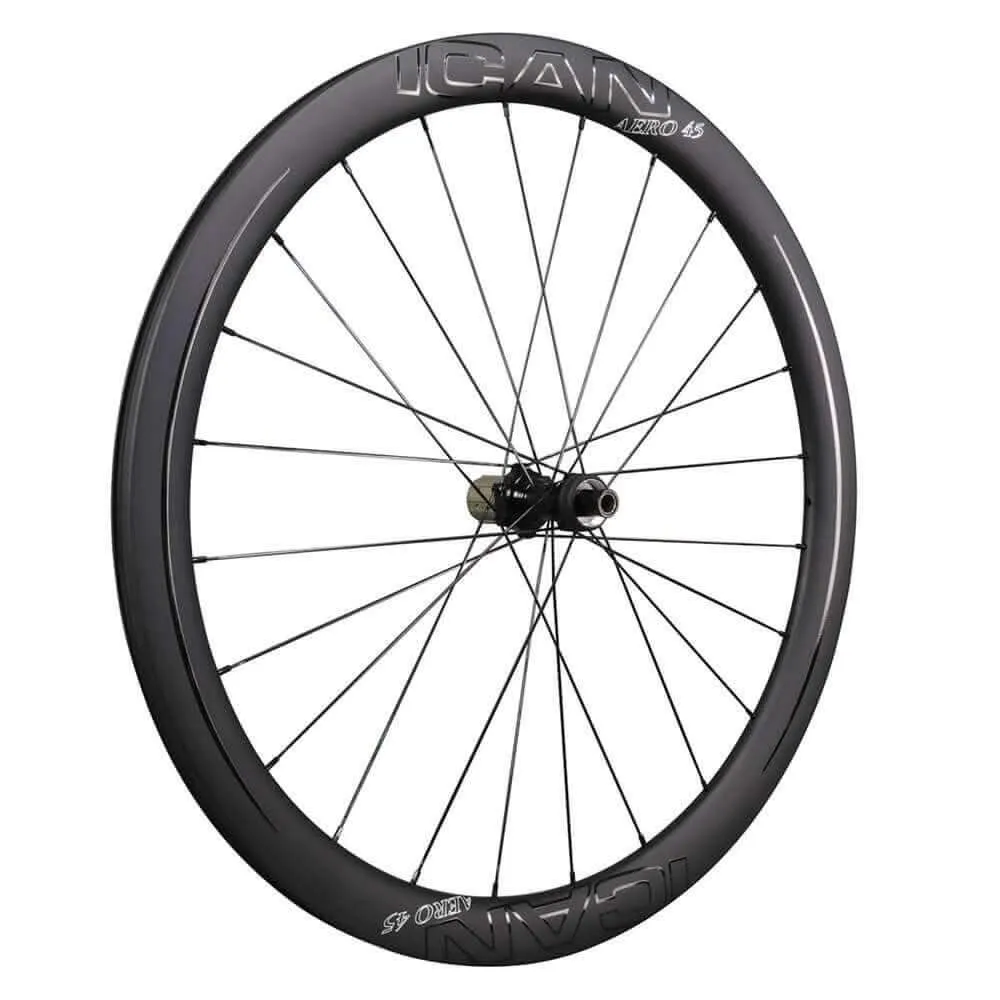

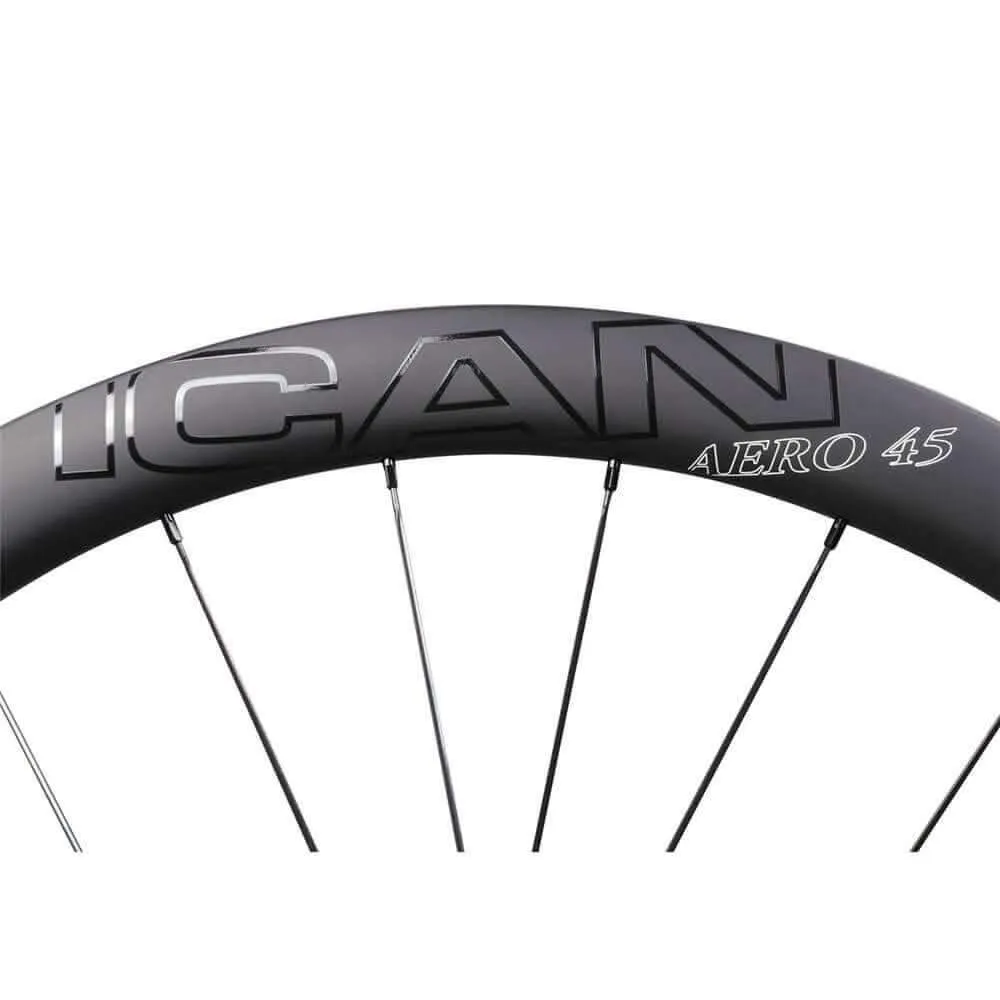

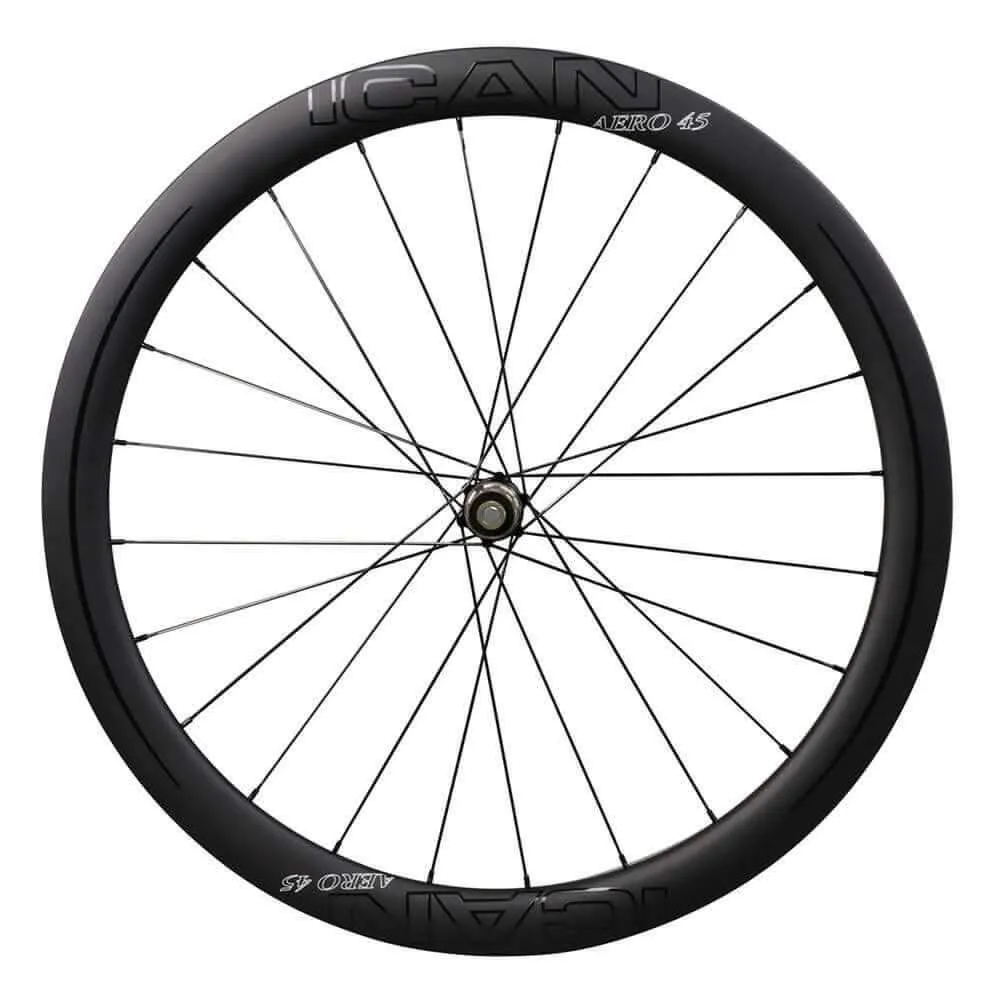

The ICAN Aero 45 Disc is a 45mm deep, wide tubeless ready disc wheelset. The Aero range is based on our best-selling Fast and Light series. Now you get to go even faster as the Aero wheelsets are around 100g lighter than their predecessors. They are still just as stiff and strong. You’ll be hard pushed to get any flex from our wheels. You’ll just be speeding along the road with that lovely carbon hum.
To lighten ICAN Aero 45 Disc wheels we had to change their carbon fiber layup. We moved from solely Toray T700 carbon fiber to a mix of Toray T700 and T800. That allowed us to keep all the same strengths that you loved about our FL wheels but make them lighter, which we think you’ll also love.

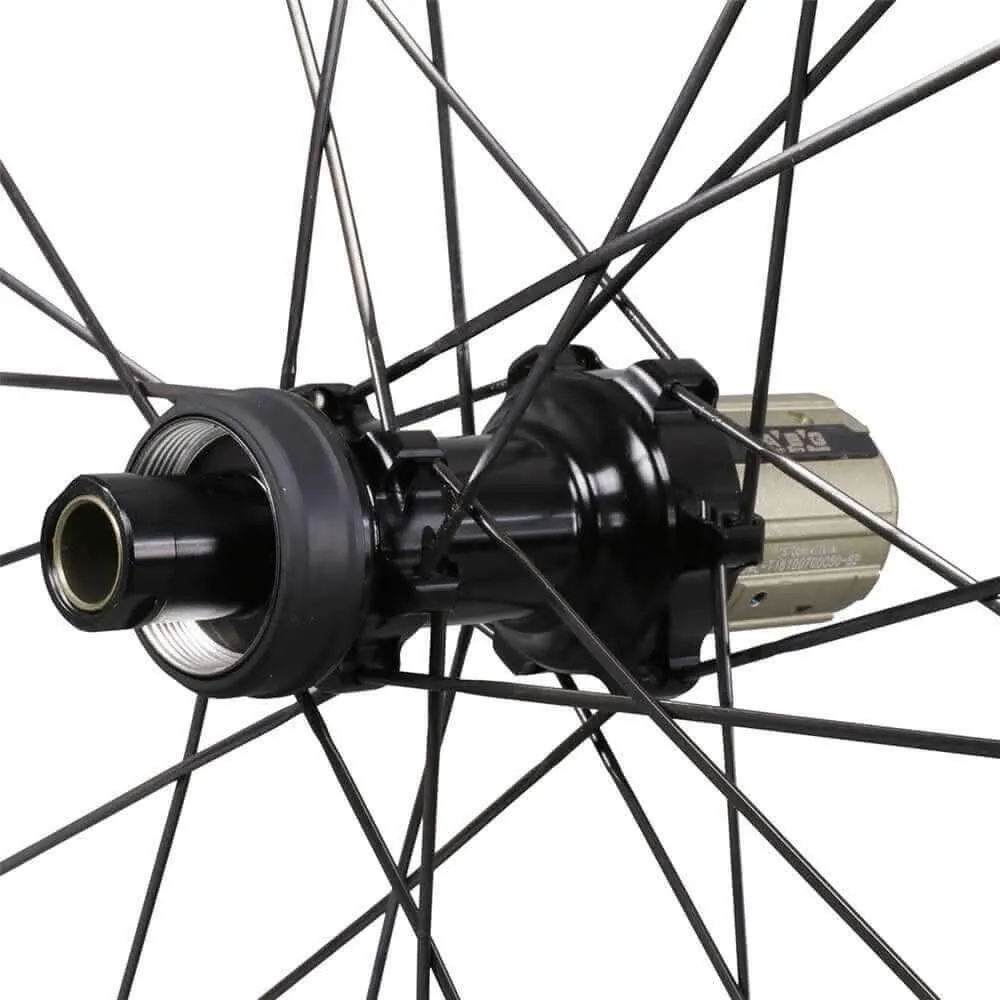

The ICAN aero rim shape is laced using Sapim CX-Ray spokes. The CX-Ray spokes are the world leaders in light, aero, and strong spokes and this made them the perfect partner for our rims. On the end of these spokes, we have our own sealed bearing D01 hubs. These hubs come with a Centerlock disc mount and a thru axle system, 12 x 100mm at the front and 12 x142mm at the rear.
Features
Wide Rim Tech

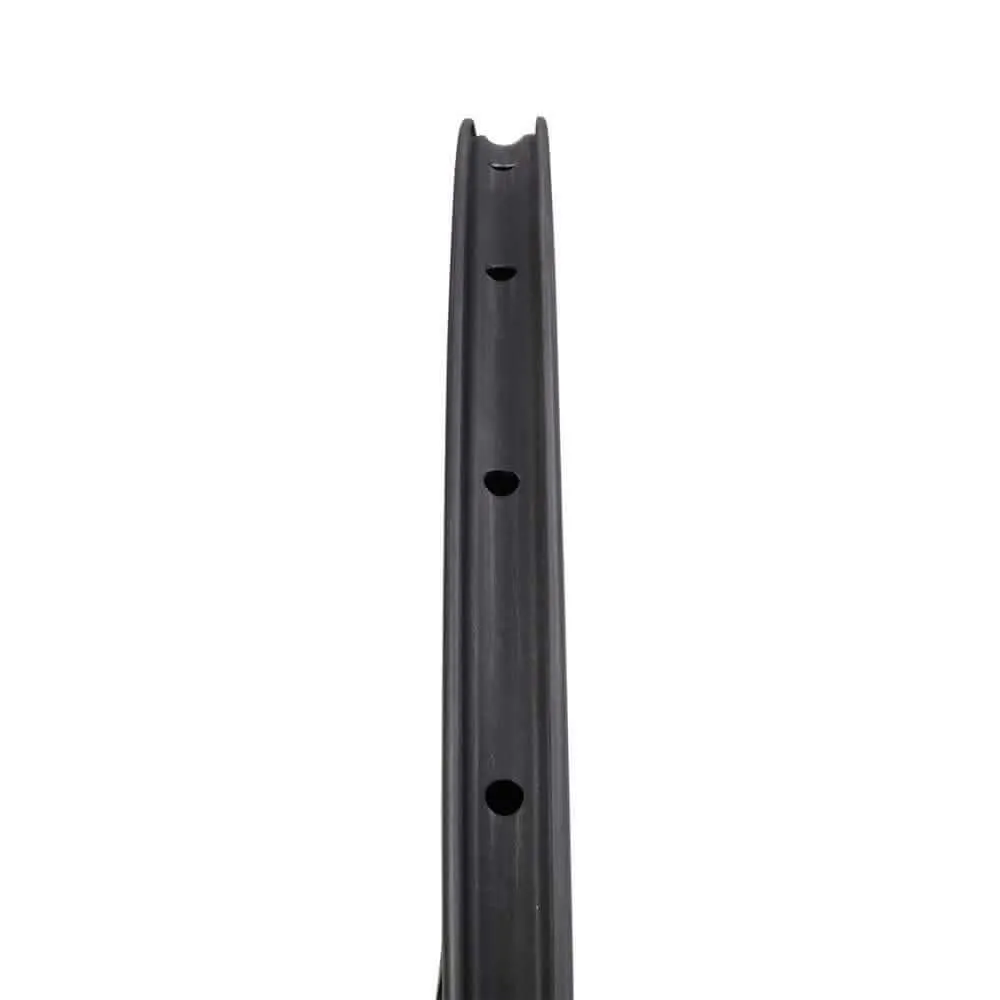

25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.
2-Way Clincher Tubeless. Tubes or No-Tubes
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
